Keysight Agilent E5071-62182 E5071-66502-022-79-1120-00022 Assembly Board

The Agilent E5071-62182 and E5071-66502 are assembly boards used in the Agilent E5071C ENA Series Network Analyzer. These boards are integral to the instrument's functionality, contributing to its signal processing and measurement capabilities.

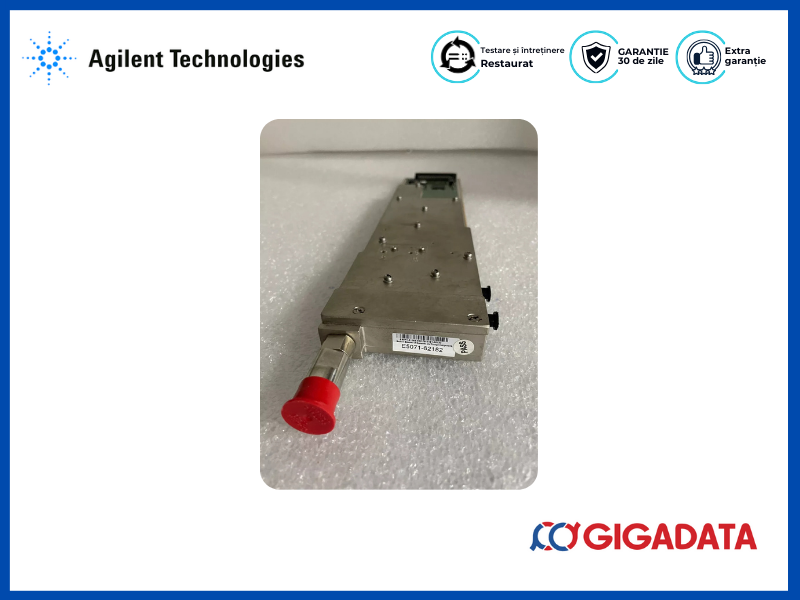

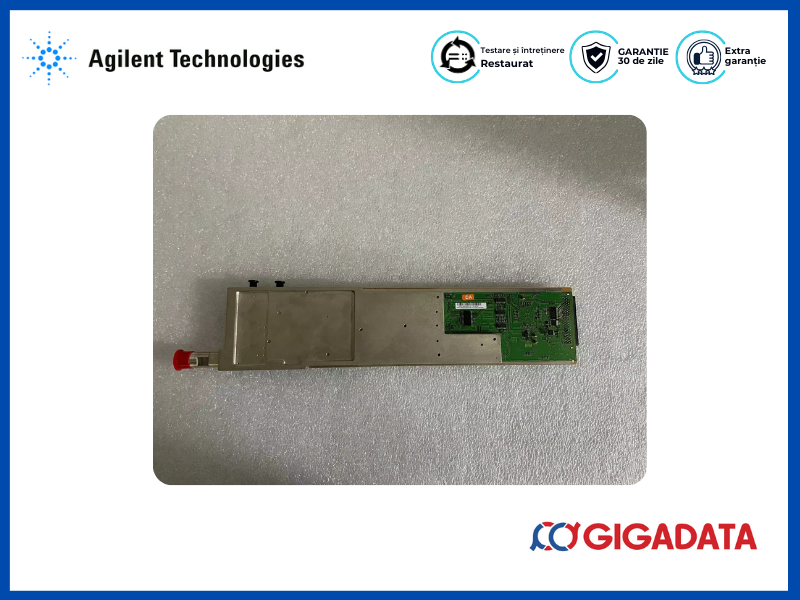

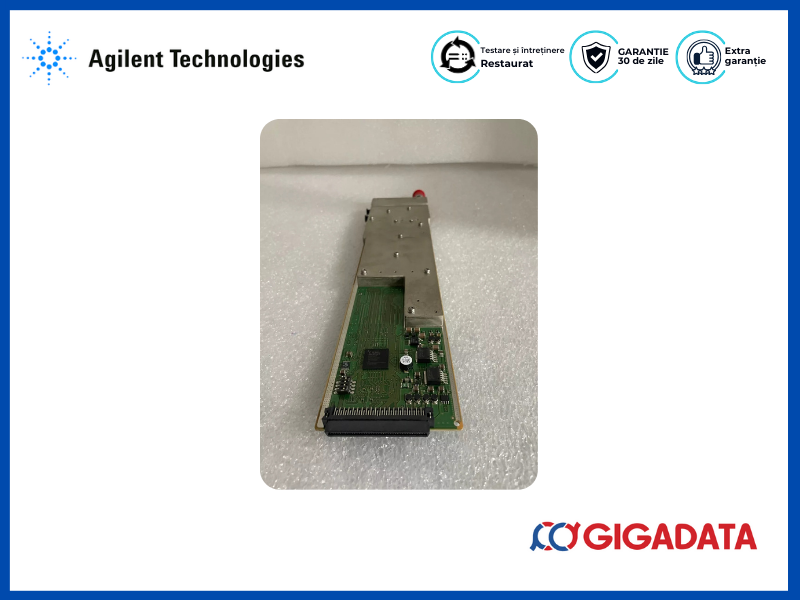

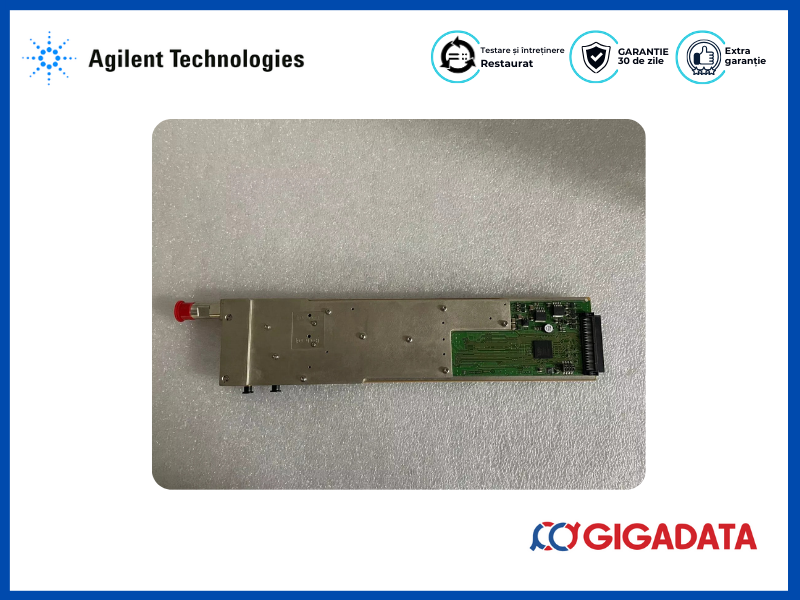

E5071-62182 Receiver Assembly Board: This board functions as the receiver assembly within the E5071C network analyzer, handling the reception and initial processing of signals. It is a critical component for accurate network analysis measurements.

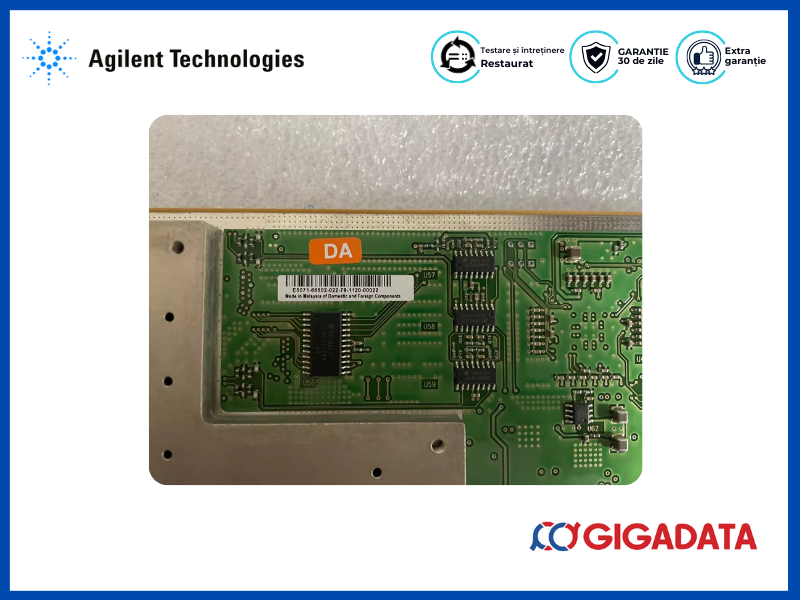

E5071-66502 Assembly Board: Specific details about the E5071-66502 assembly board are limited. However, it is known to be part of the E5071C's internal architecture, contributing to the analyzer's overall performance.

For comprehensive information on these components, including their roles and specifications, consulting the Agilent E5071C ENA Service Manual is recommended. This manual provides detailed insights into the instrument's internal components and their functions.

If you are considering purchasing these assembly boards, they are available through various suppliers, including online marketplaces like eBay. Ensure that the components are compatible with your specific model and configuration of the E5071C network analyzer.
