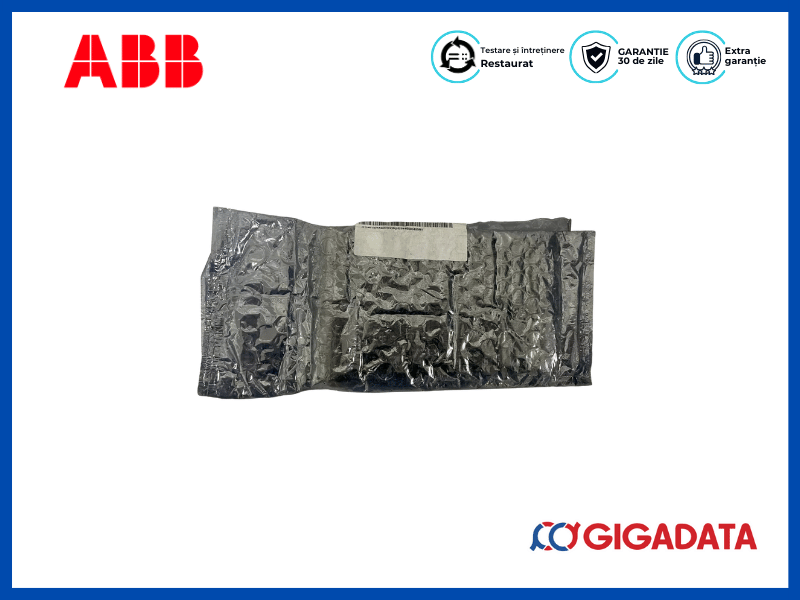

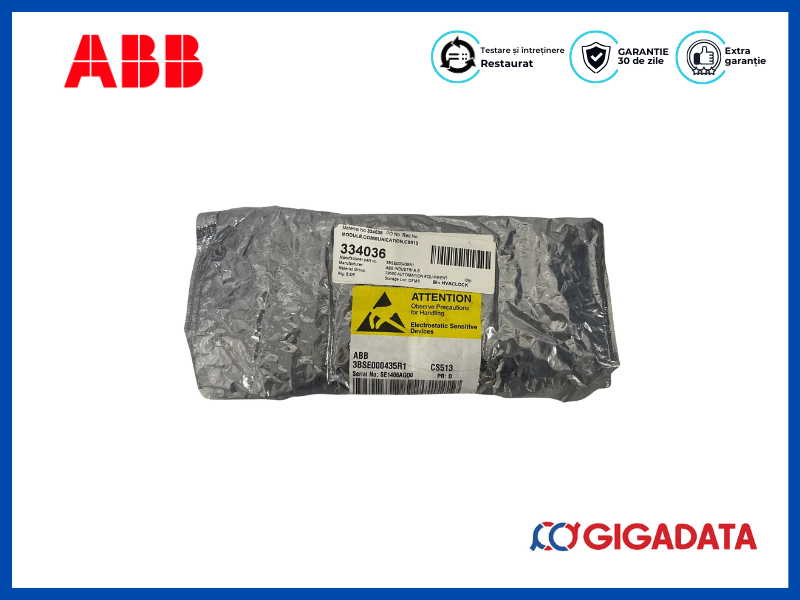

ABB 3BSE000435R1 CS513 COMMUNICATIONS MODULE

Standards Compliance

• The module fully complies with the IEEE 802.3 standards, which govern Ethernet networking. This ensures compatibility with a wide range of Ethernet devices, facilitating integration into existing network infrastructures.

Data Rate

• It supports multiple data rates, including 10 Mbps (10BASE-T), 100 Mbps (100BASE-TX), and 1000 Mbps (1000BASE-T), allowing for flexible performance based on network requirements. This versatility makes it suitable for both legacy and modern applications.

Connectivity Options

• The module typically features several Ethernet ports, which can include RJ45 connectors for copper cabling and fiber optic ports for long-distance communication. This variety allows for diverse network topologies and configurations, catering to different installation scenarios.

Protocol Support

• It is compatible with a wide array of networking protocols, including TCP/IP, UDP, and others. This broad protocol support ensures that the module can integrate seamlessly into various networking environments, facilitating data exchange between different systems.

Industrial Design

• Built with durability in mind, the CS513 module is designed to operate in harsh industrial environments. It can withstand extreme temperatures, vibrations, and electromagnetic interference (EMI), making it ideal for manufacturing, automation, and other industrial applications.

Ease of Integration

• The module is designed for straightforward installation and configuration. Features like auto-negotiation allow devices to automatically detect and configure the best possible connection settings, reducing setup time and complexity.

Diagnostics and Monitoring

• The module often includes diagnostic features such as LED indicators that display link status and activity. Additionally, it may support SNMP (Simple Network Management Protocol), enabling network administrators to monitor performance and troubleshoot issues remotely.

Power over Ethernet (PoE) Support

• Certain models may support Power over Ethernet (PoE), allowing the module to deliver power to connected devices through the same Ethernet cable used for data transmission. This capability simplifies installation by reducing the need for additional power supplies and outlets.

Security Features

• Enhanced security measures may be implemented within the module to protect against unauthorized access and ensure data integrity. This can include features like VLAN support, port security, and advanced encryption protocols.

Modular Design

• The CS513 module features a modular design that allows for easy upgrades and scalability. Users can add or replace modules as their network requirements evolve, ensuring a future-proof solution.

Environmental Ratings

• The module is often rated for specific environmental conditions, such as IP ratings for dust and water resistance, further enhancing its suitability for industrial applications.

Compatibility with Network Management Tools

• The module can be integrated with various network management tools, providing capabilities for monitoring, configuration, and management of the network infrastructure.
