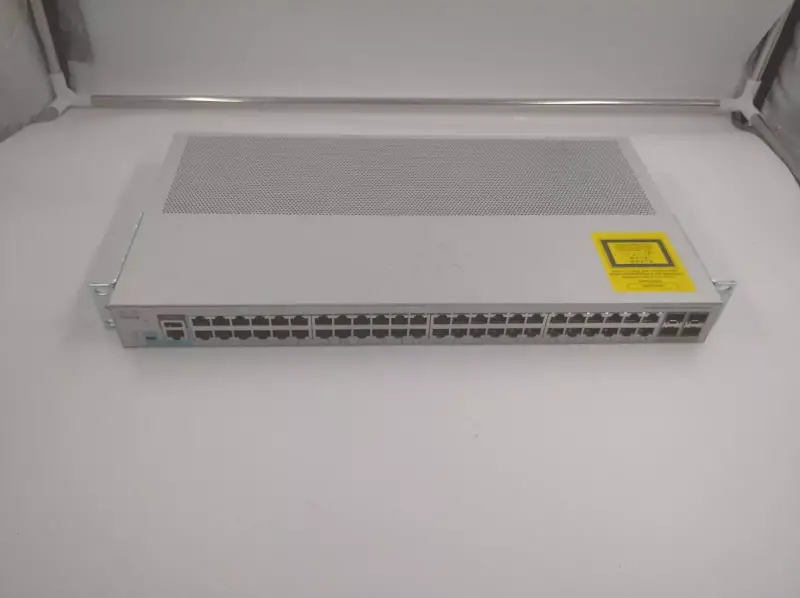

Cisco WS-C2960L-SM-48TQ Smart Managed 48 10/100/1000 Ethernet Ports, 4 x 10G SFP+ by Cisco

General Features

• Model: WS-C2960L-SM-48TQ
• Type: Smart Managed Switch
• Form Factor: Rack-mounted

Technical Specifications

• Ports:

  • 48 x 10/100/1000 Ethernet Ports: For high-speed connectivity.
  • 4 x 10G SFP+ Ports: For uplink or stacking connectivity.

• Switching Capacity: Typically up to 176 Gbps.

• Forwarding Rate: Up to 130.95 Mpps (million packets per second).

Performance

• Layer: Layer 2 switching with limited Layer 3 static routing capabilities.
• MAC Address Table: Supports up to 16,000 MAC addresses.

Power and Cooling

• Power Supply: Fixed power supply with options for PoE (Power over Ethernet).
• Power Consumption: Approximately 120W (varies depending on configuration).

Features

• Management: Smart management features via Cisco's web-based interface.
• Quality of Service (QoS): Supports advanced QoS features for traffic prioritization.
• VLAN Support: Supports up to 256 VLANs for network segmentation.

Environmental Specifications

• Operating Temperature: Typically between 0 °C to 40 °C.
• Storage Temperature: Typically between -40 °C to 70 °C.
• Humidity: 10% to 90% non-condensing.

Additional Features

• Stackable: Supports Cisco StackWise technology for easy stacking.
• Security Features: Includes features like port security, DHCP snooping, and access control lists (ACLs).
